FORTIS® Multiple Duct System
Duct Systems
A rigid, structural multiple duct system for the protection of HV and LV power cables and telecommunication cables. UK manufactured from 100% recycled polyethylene, FORTIS® is a durable, lightweight alternative to traditional ducting. Its push-fit joint assembles rapidly on-site — maintaining alignment and preventing silt ingress — while its inherent strength removes the need for a concrete surround in most applications.

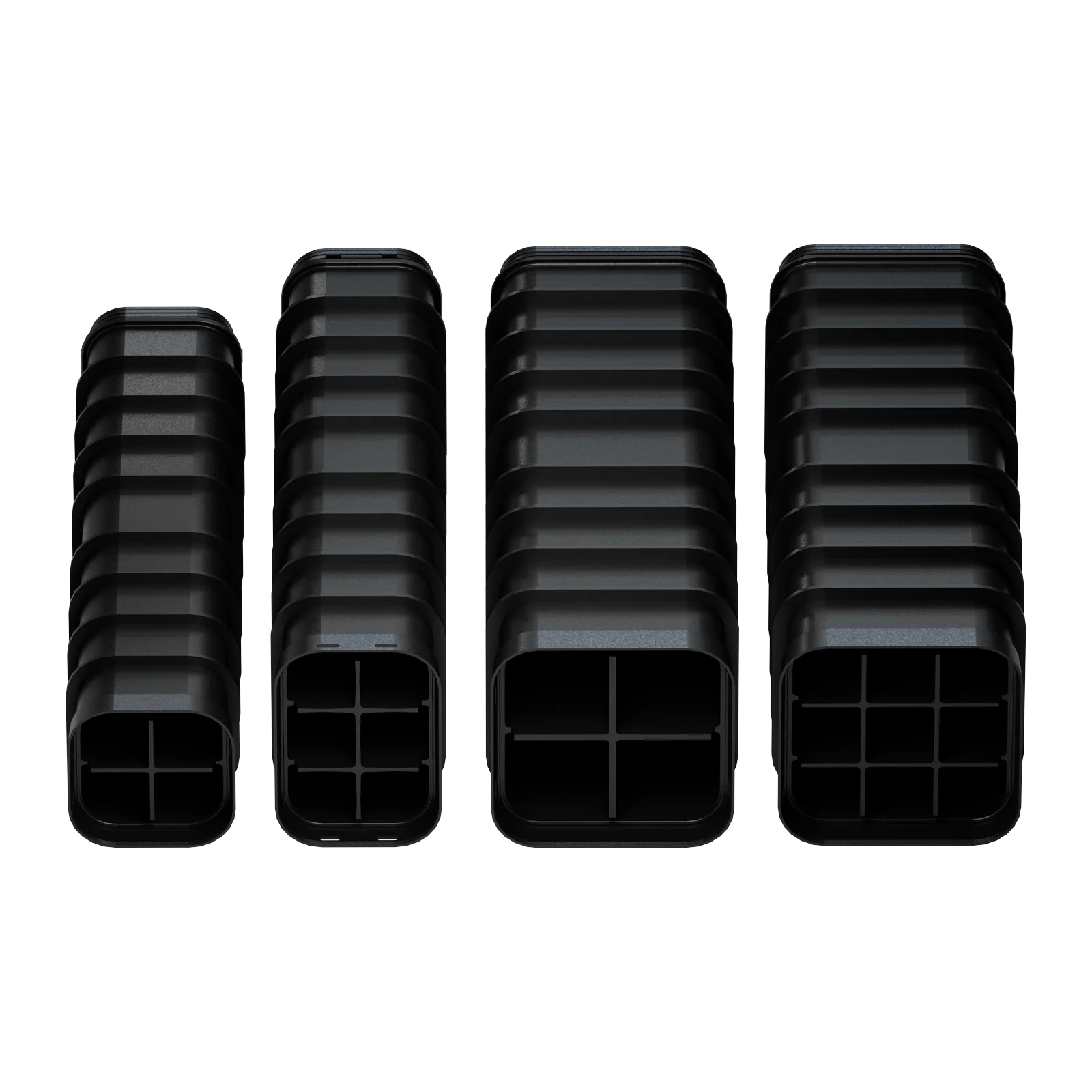

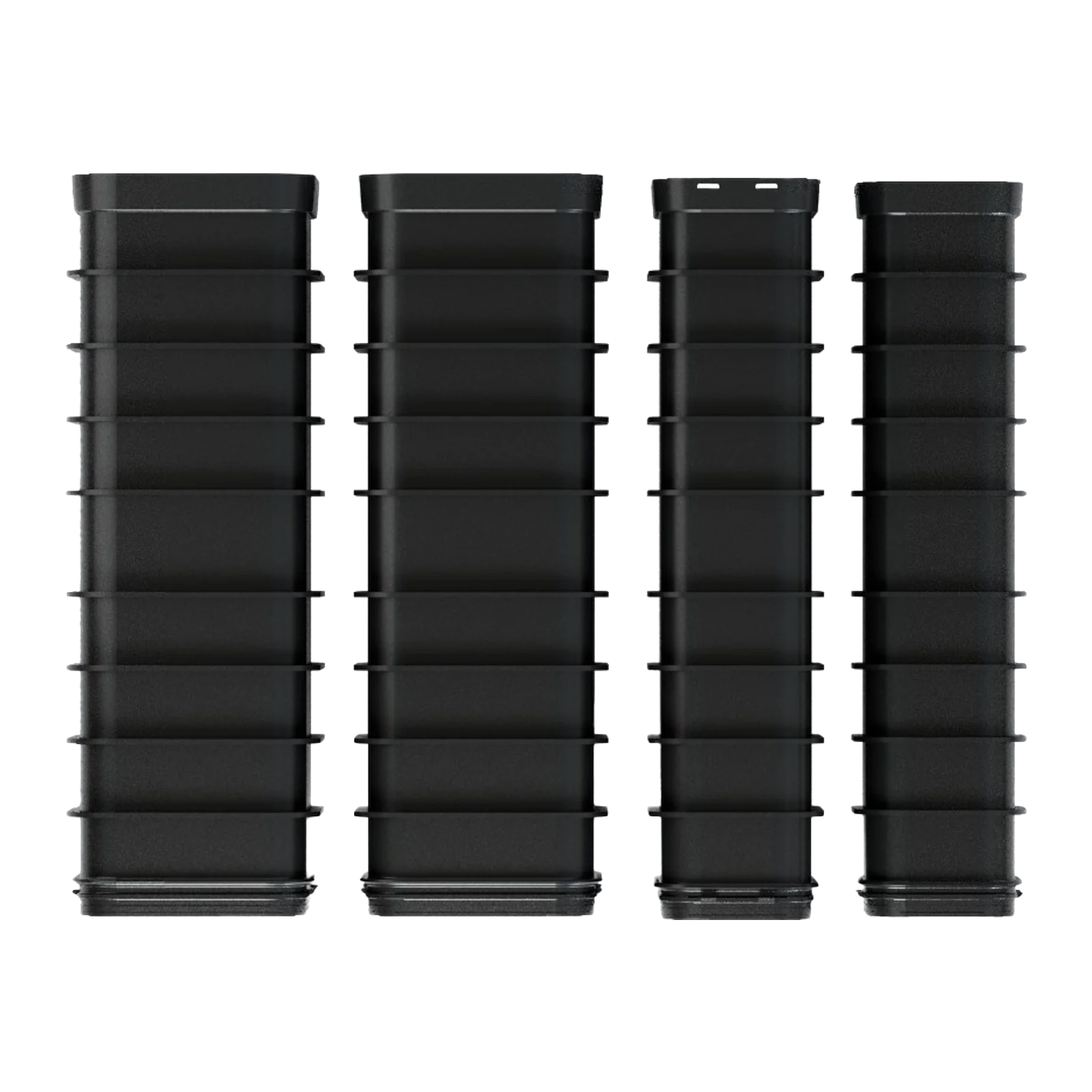

| Configuration | Length | Outer size | Inner size | Weight |
|---|---|---|---|---|
| 4 Way | 1050mm | 258×258mm | 217×217mm | 8kg |
| 6 Way | 1050mm | 369×258mm | 327×217mm | 11kg |
| 4 Way XL | 1050mm | 364×364mm | 321×321mm | 17kg |
| 9 Way | 1050mm | 369×369mm | 327×327mm | 18kg |
