EasyPIT® ULTRA
Network Access Chambers

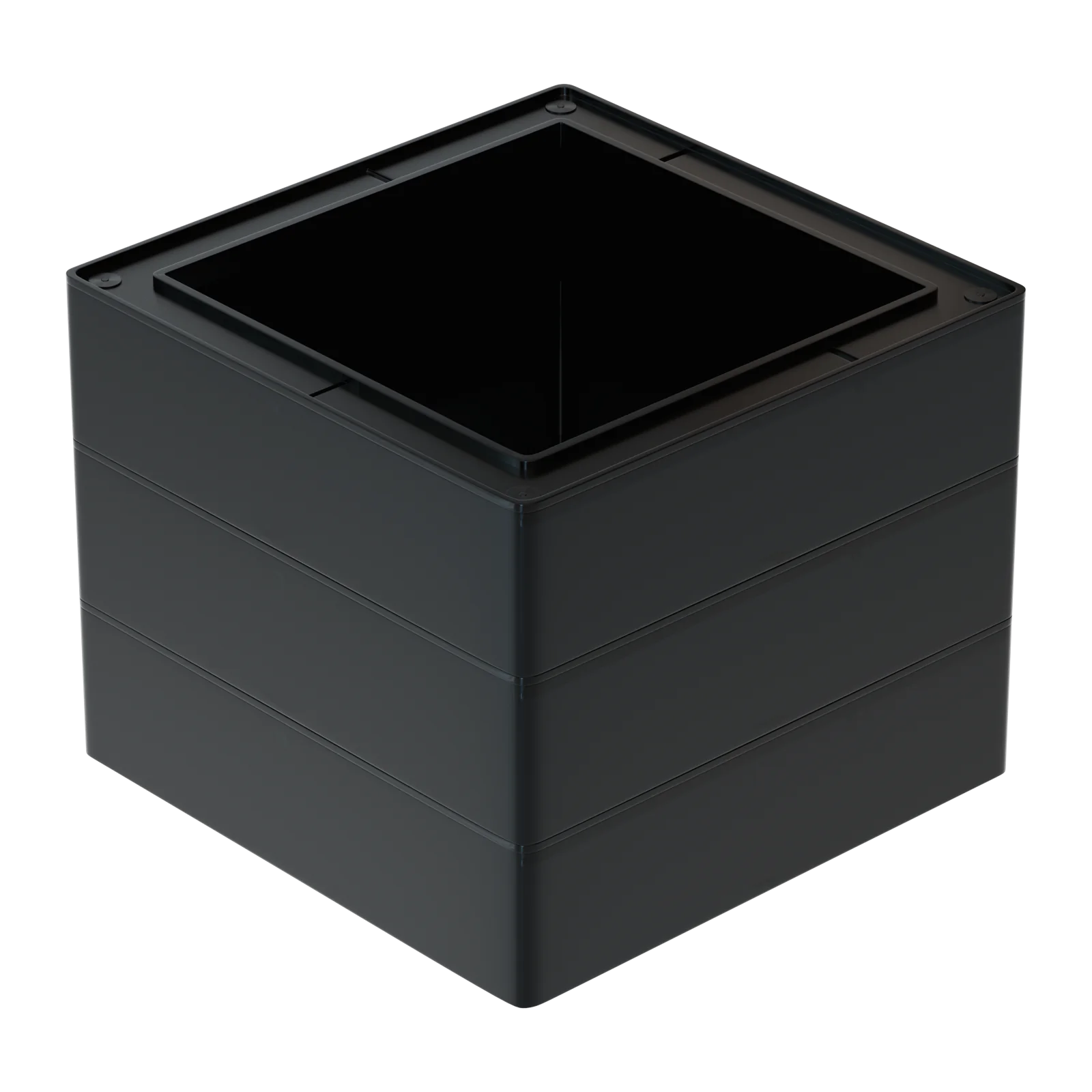

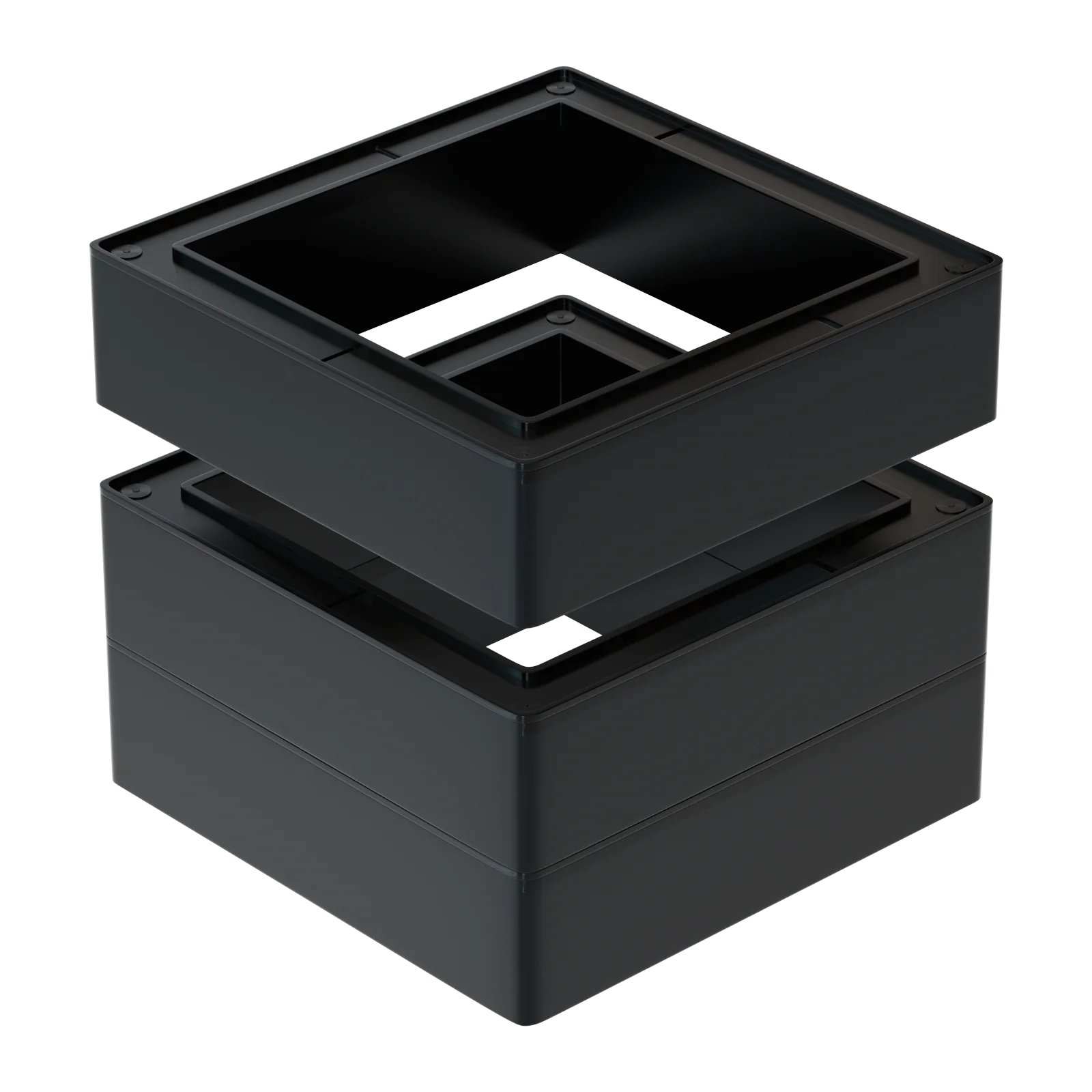

A quick-build structural alternative to traditional concrete or brick-built chambers. Each 150mm deep ring stacks to achieve any required depth creating a completely load-bearing chamber suitable for both footway and carriageway environments.
| Product Code | Clear Opening (mm) | External (mm) | Weight (kg) |
|---|---|---|---|
| EPIT3030D | 300 × 300 | 470 × 470 | 2.9 |
| EPIT4530D | 450 × 300 | 620 × 470 | 6.5 |
| EPIT4545D | 450 × 450 | 620 × 620 | 7.2 |
| EPIT6045D | 600 × 450 | 770 × 620 | 6.5 |
| EPIT6060D | 600 × 600 | 770 × 770 | 5.8 |
| EPIT7560D | 750 × 600 | 920 × 770 | 6.5 |
| EPIT7567D | 750 × 675 | 1470 × 770 | 6.5 |
| EPIT7575D | 750 × 750 | 920 × 920 | 7.3 |
| EPIT9045D | 900 × 450 | 1070 × 620 | 6.5 |
| EPIT9060D | 900 × 600 | 1070 × 770 | 6.6 |
| EPIT9090D | 900 × 900 | 1070 × 1070 | 7.3 |
| EPIT100100D | 1000 × 1000 | 1170 × 1170 | 8.7 |
| EPIT12060D | 1200 × 600 | 1370 × 770 | 8.3 |
| EPIT12067D | 1200 × 675 | 1370 × 845 | 6.6 |
| EPIT12075D | 1200 × 750 | 1370 × 920 | 9.1 |
| EPIT12090D | 1200 × 900 | 1370 × 1070 | 9.6 |
| EPIT120120D | 1200 × 1200 | 1370 × 1370 | 10.8 |
| EPIT13060D | 1300 × 600 | 1470 × 770 | 8.6 |
| EPIT13085D | 1300 × 850 | 1470 × 1020 | 9.9 |
| EPIT13090D | 1300 × 900 | 1470 × 1070 | 9.4 |
| EPIT150150D | 1500 × 1500 | 1670 × 1670 | 12.1 |
| EPIT180180D | 1800 × 1800 | 1970 × 1970 | 15.0 |
