D400 Ductile Iron Access Covers
Access Covers

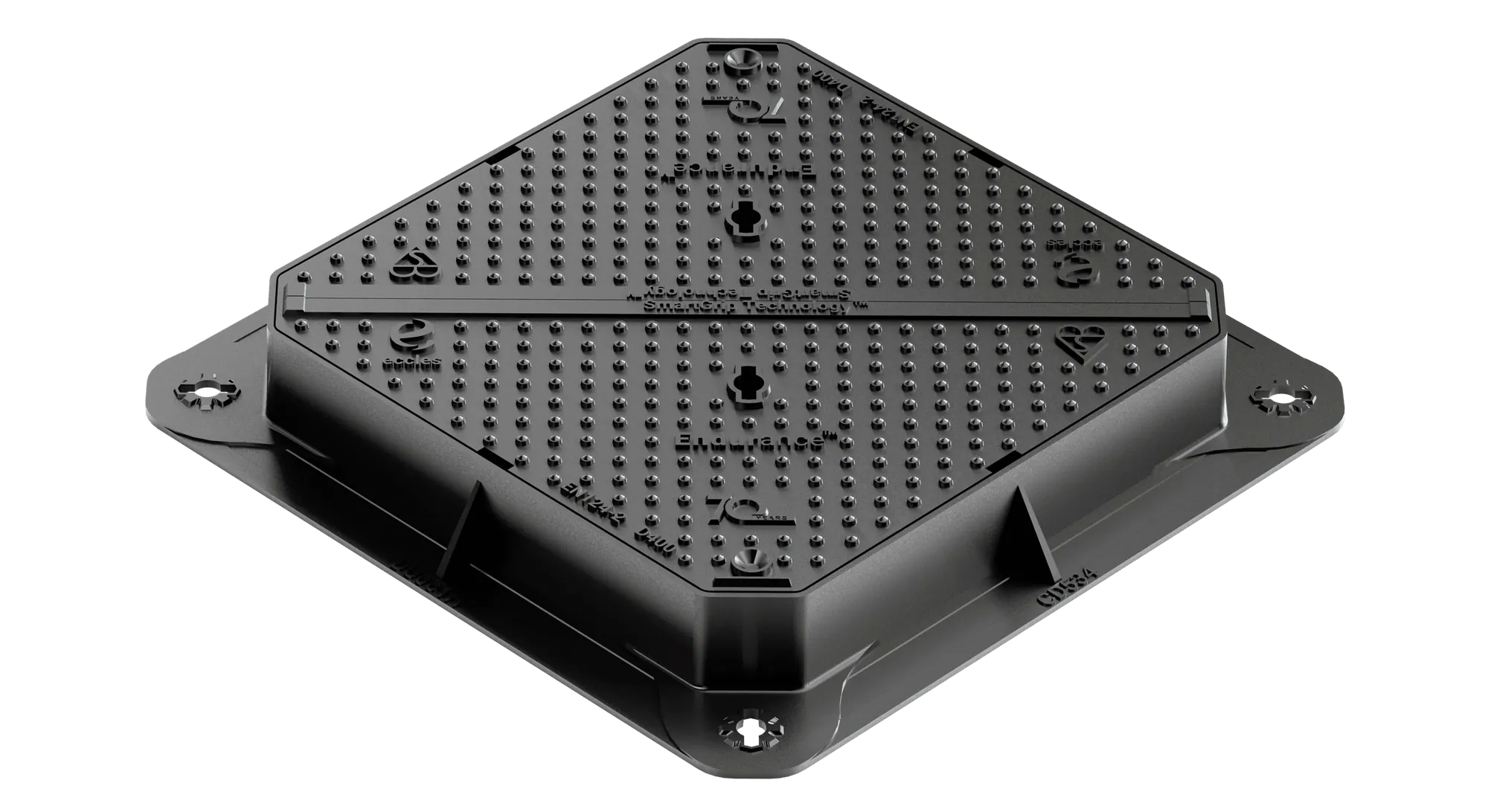

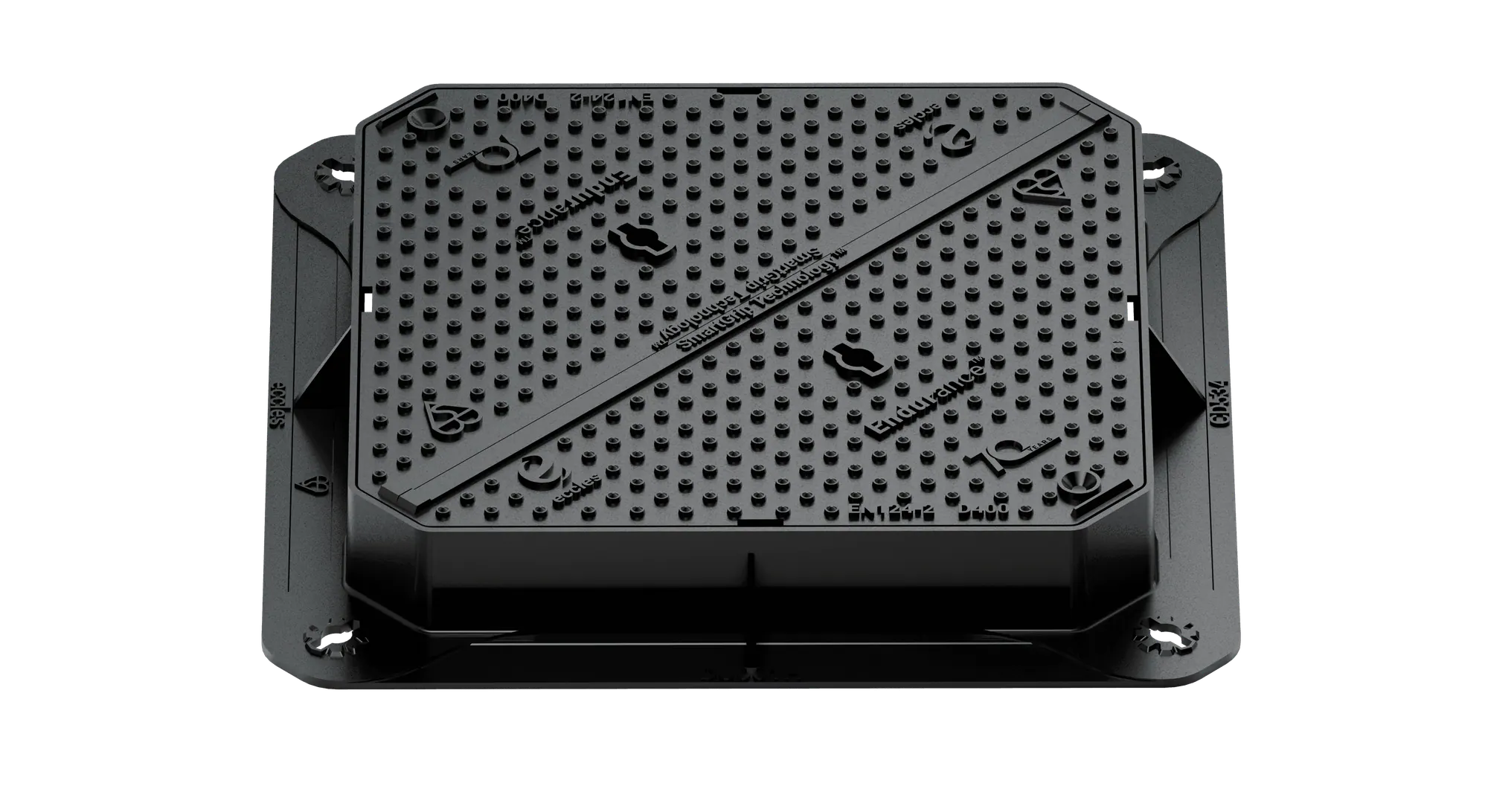

D400 (40-tonne) ductile iron double-triangular manhole covers and frames for carriageways, hard shoulders and heavy-duty pedestrian areas. Non-rock seating with hinged sequential-opening options.
| Product Code | Clear Opening (mm) | Over Frame (mm) | Depth (mm) |
|---|---|---|---|
| MHD454510KM | 450×450 | 562×562 | 100 |
| MHD604510KM | 600×450 | 712×562 | 100 |
| MHD606010KM | 600×600 | 712×712 | 100 |
| MHD606015KM | 600×600 | 712×712 | 150 |
| MHD676710KM | 675×675 | 786×786 | 100 |
| MHD676715KM | 675×675 | 786×786 | 150 |
| MHD757510KM | 750×750 | 855×855 | 100 |
| MHD906010KM | 900×600 | 1030×730 | 100 |
| MHD909010KM | 900×900 | 1030×1030 | 100 |
| MHD126710KM | 1220×675 | 1370×811 | 100 |
| MHD126715KM | 1220×675 | 1370×811 | 150 |
